SPA TURBO Lightweight Late Model Radiator - Double Pass - 26.8" x 19.6" + Power Steering Tank Firewall Mount (Right Inlet) - Black Cap

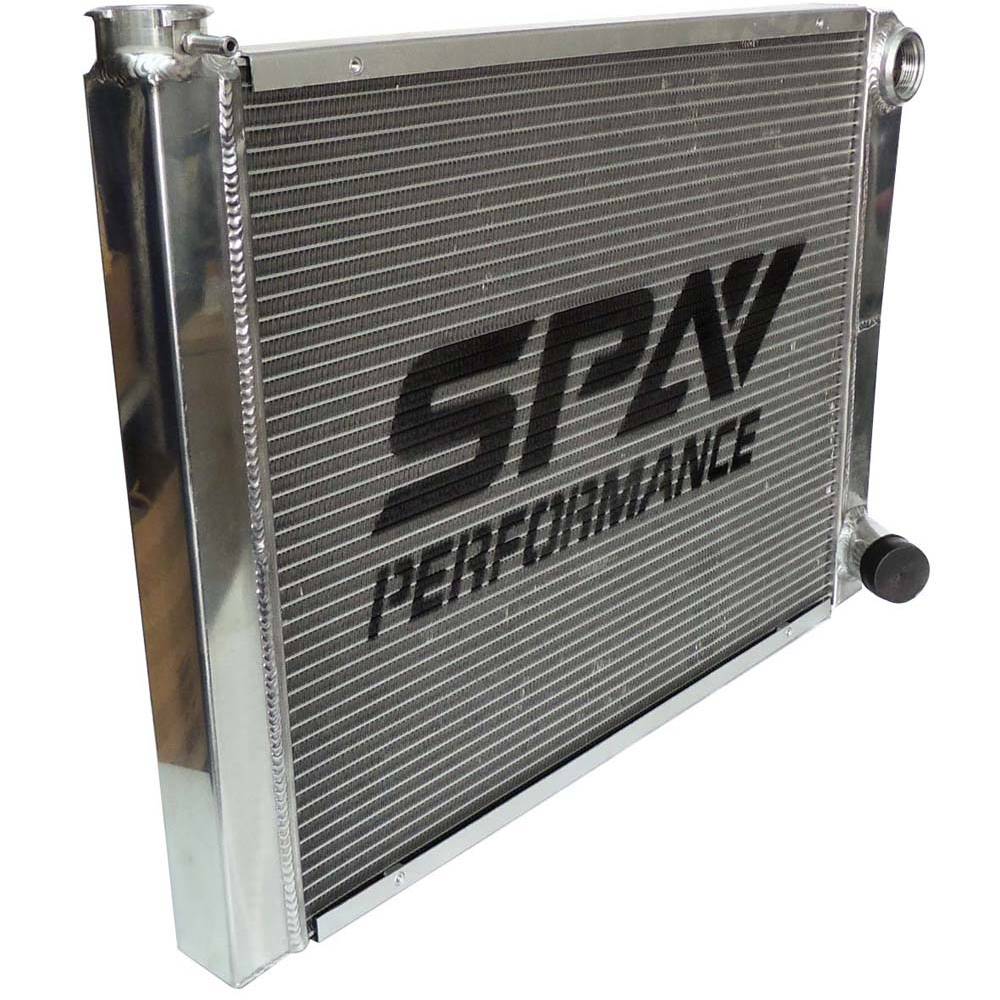

Lightweight Late Model Radiator - Double Pass - 26.8" x 19.6"

  • Optimized dimensions - tested and approved on tracks: same performance as 28 "regular radiators, but in a lighter and smaller design.
  • Overall Length: 26.81"
  • Overall Height: 19.60"
  • Overall Width: 2.2"
  • Core Length: 22"
  • Core Height: 18.4"
  • Core Width: 3 1/4"
  • Inlet: 1 5/8 - 12 UNF"
  • Outlet: 1 3/4"
  • Weight: 10 lbs / 14 oz / 4.9 kg
  • Pass: Double
  • Aluminum Construction
  • Polished Finish
  • Does not include cap (1.1 recommended)

    •

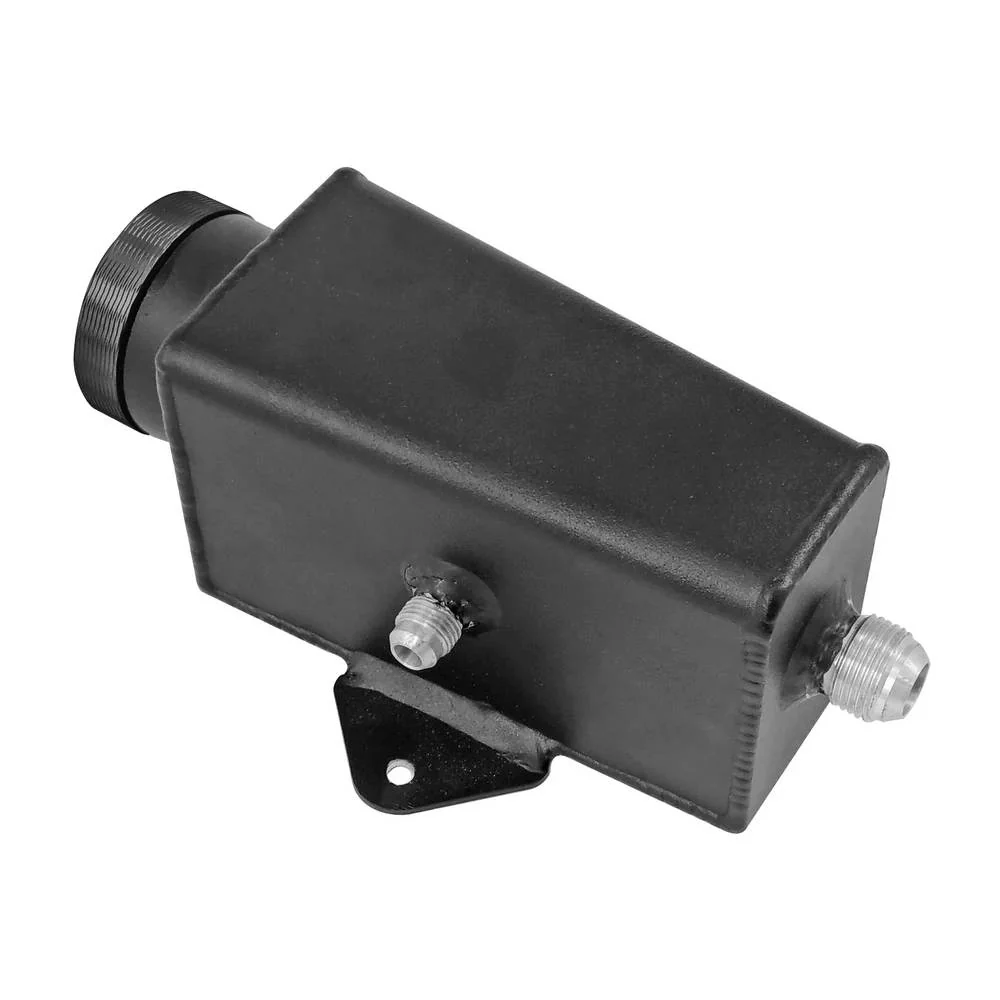

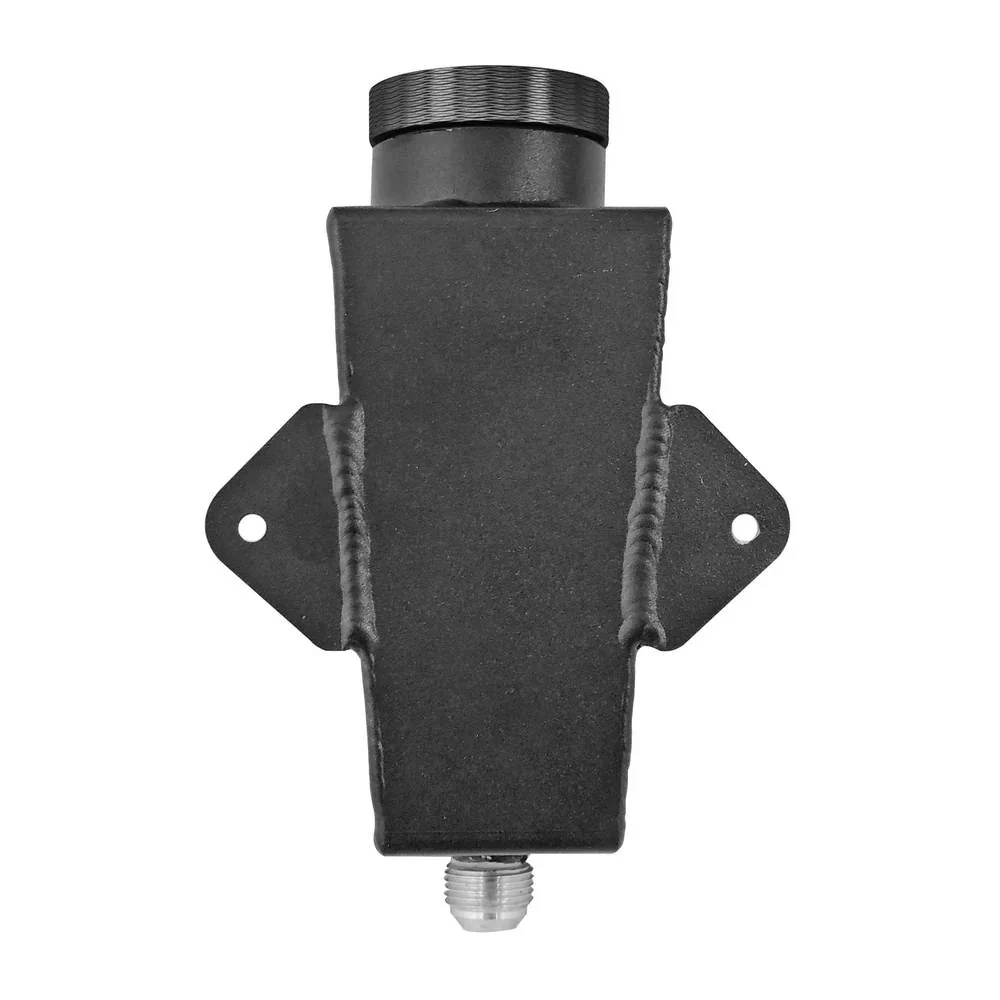

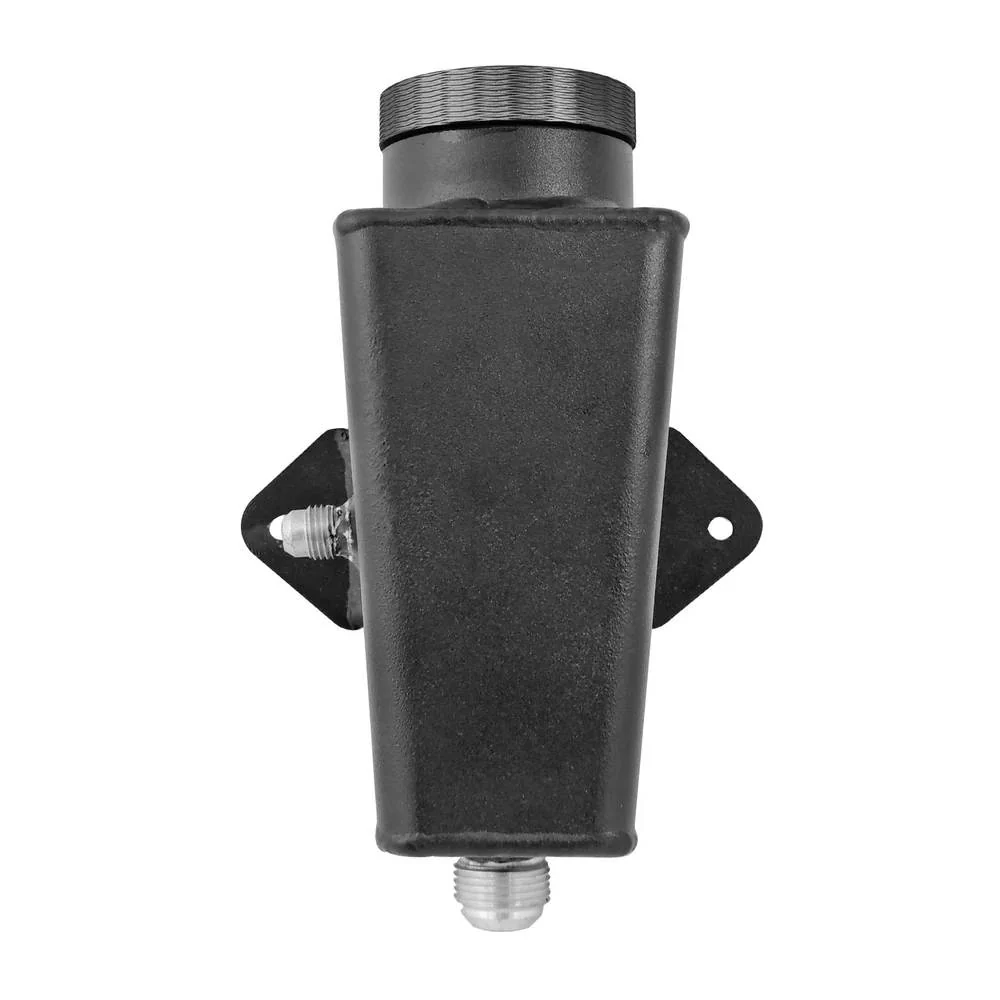

    Power Steering Tank Firewall Mount (Right Inlet) - Black Cap

  • Length: 8"
  • Width: 3"
  • Supply: -10AN
  • Return: -6AN
  • Tank: Aluminum
  • Wrinkle powder coating
  • Cap: billet anodized

    • $139.90
    SPA TURBO Lightweight Late Model Radiator - Double Pass - 26.8" x 19.6" + Power Steering Tank Firewall Mount (Right Inlet) - Black Cap—
    $139.90

    Product Information

    Shipping & Returns

    Description

    Lightweight Late Model Radiator - Double Pass - 26.8" x 19.6"

  • Optimized dimensions - tested and approved on tracks: same performance as 28 "regular radiators, but in a lighter and smaller design.
  • Overall Length: 26.81"
  • Overall Height: 19.60"
  • Overall Width: 2.2"
  • Core Length: 22"
  • Core Height: 18.4"
  • Core Width: 3 1/4"
  • Inlet: 1 5/8 - 12 UNF"
  • Outlet: 1 3/4"
  • Weight: 10 lbs / 14 oz / 4.9 kg
  • Pass: Double
  • Aluminum Construction
  • Polished Finish
  • Does not include cap (1.1 recommended)

    •

    Power Steering Tank Firewall Mount (Right Inlet) - Black Cap

  • Length: 8"
  • Width: 3"
  • Supply: -10AN
  • Return: -6AN
  • Tank: Aluminum
  • Wrinkle powder coating
  • Cap: billet anodized
