VW 8V 288 N/A application hydraulic tappets performance camshaft
Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with hydraulic tappets
VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.
Duration intake: 288 degrees
Duration exhaust: 288 degrees
Intake valve lift: 11.70mm
Exhaust valve lift: 11.70mm
lobe centers: 110 degrees

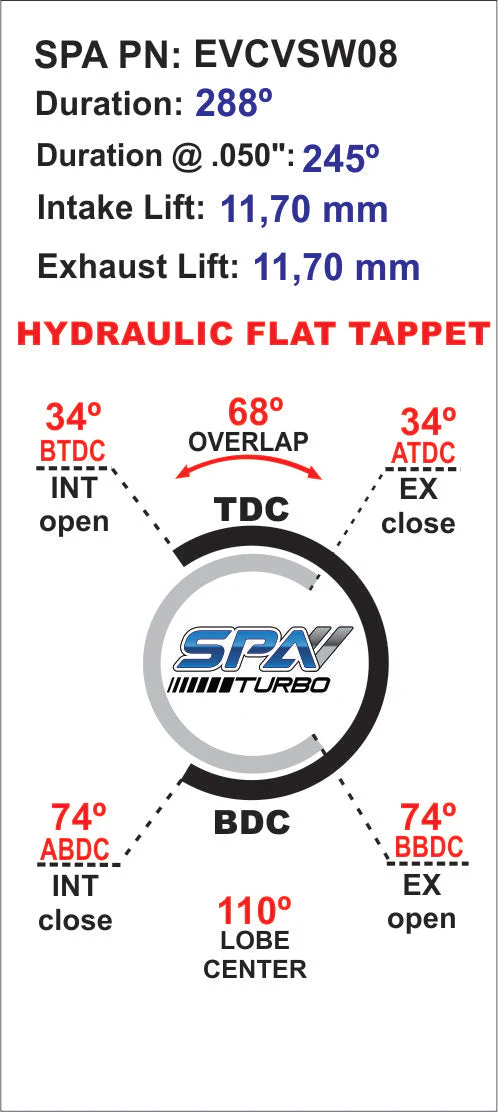

valve timing
Intake open: 34 degrees
Intake closes: 74 degrees
Exhaust open: 74 degrees
Exhaust close: 34 degrees
Valve clearance: hydraulic lifters*
Base circle: 34mm
Made of 1045 quenched steel
Billet machined
52-58 HRC
IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.
Attention: this camshaft can be used with solid lifters as long as valve lash caps (EMPI 4006, or similar) are assembled and adjusted individually. We strongly recommend that this should be done by a proper professional in order to achieve the correct valve lash values.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with hydraulic tappets
VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.
Duration intake: 288 degrees
Duration exhaust: 288 degrees
Intake valve lift: 11.70mm
Exhaust valve lift: 11.70mm
lobe centers: 110 degrees
valve timing
Intake open: 34 degrees
Intake closes: 74 degrees
Exhaust open: 74 degrees
Exhaust close: 34 degrees
Valve clearance: hydraulic lifters*
Base circle: 34mm
Made of 1045 quenched steel
Billet machined
52-58 HRC
IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.
Attention: this camshaft can be used with solid lifters as long as valve lash caps (EMPI 4006, or similar) are assembled and adjusted individually. We strongly recommend that this should be done by a proper professional in order to achieve the correct valve lash values.
