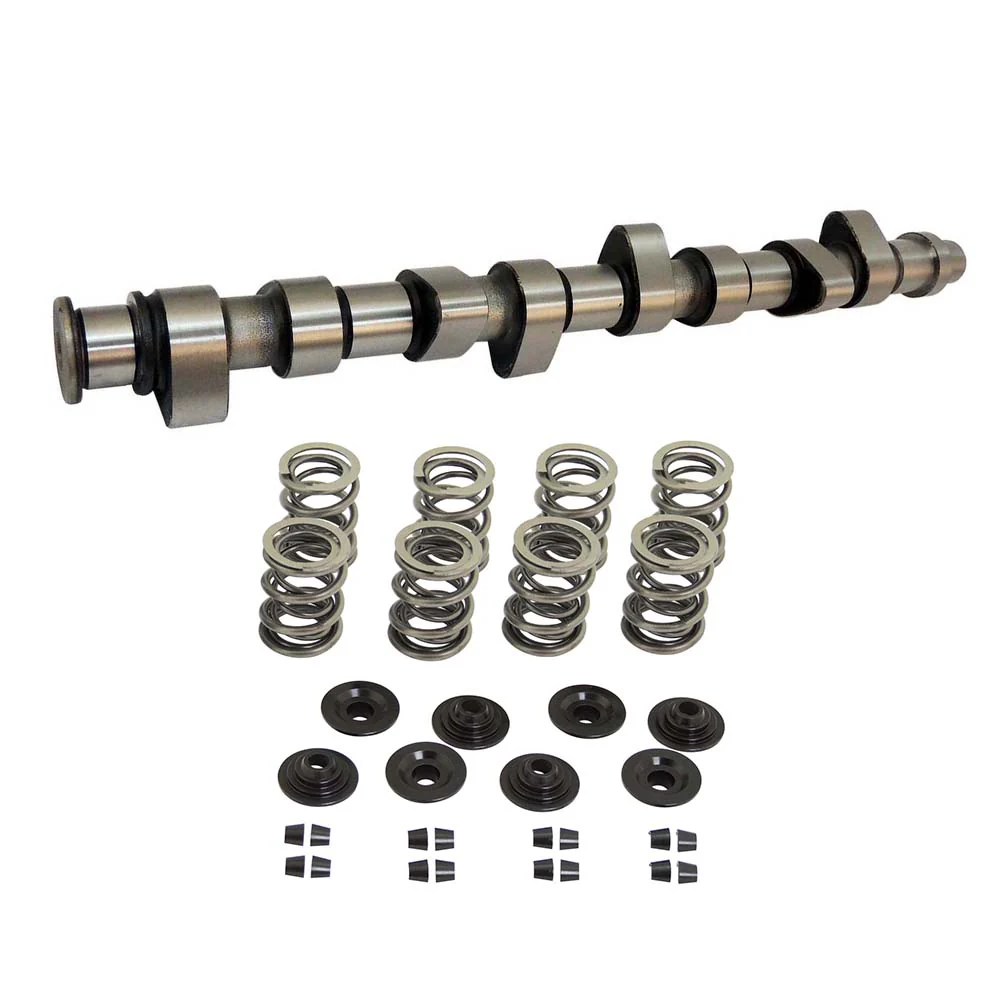

VW 8V 288 N/A application hydraulic tappets performance camshaft + DUAL SPRING SET

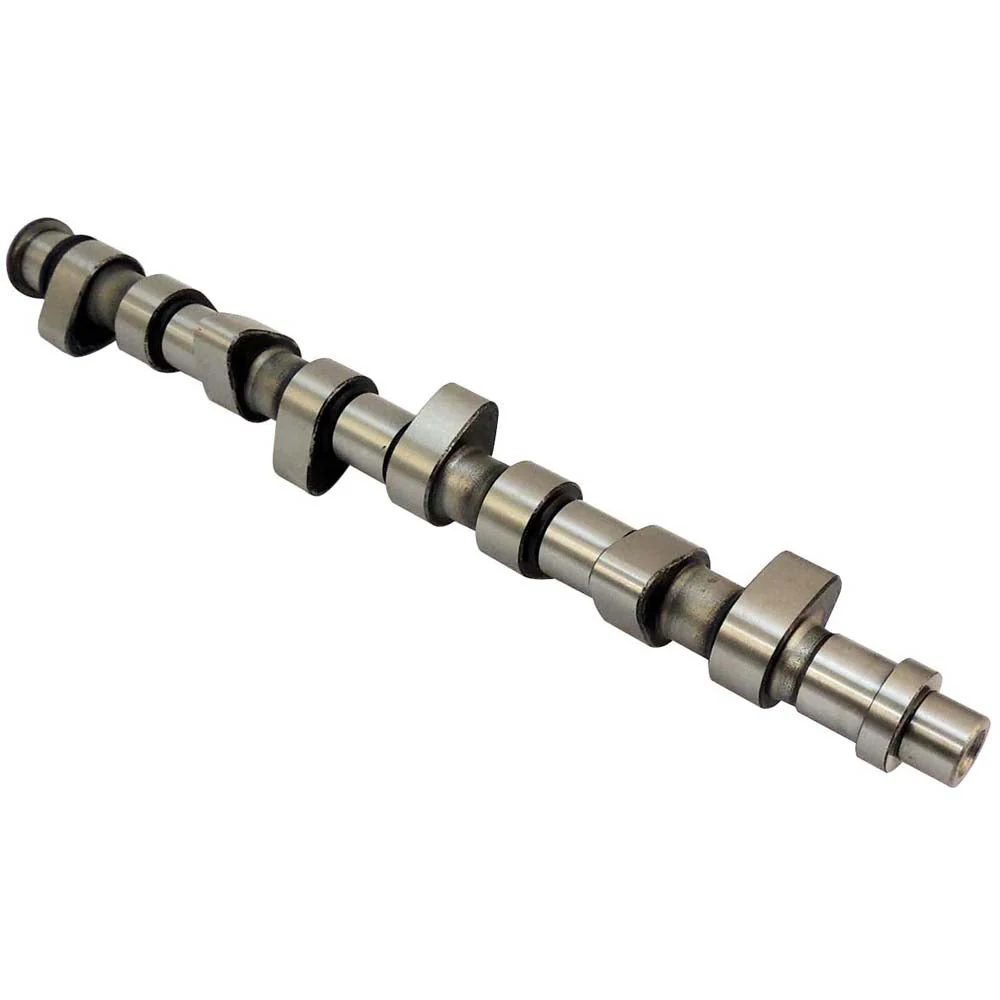

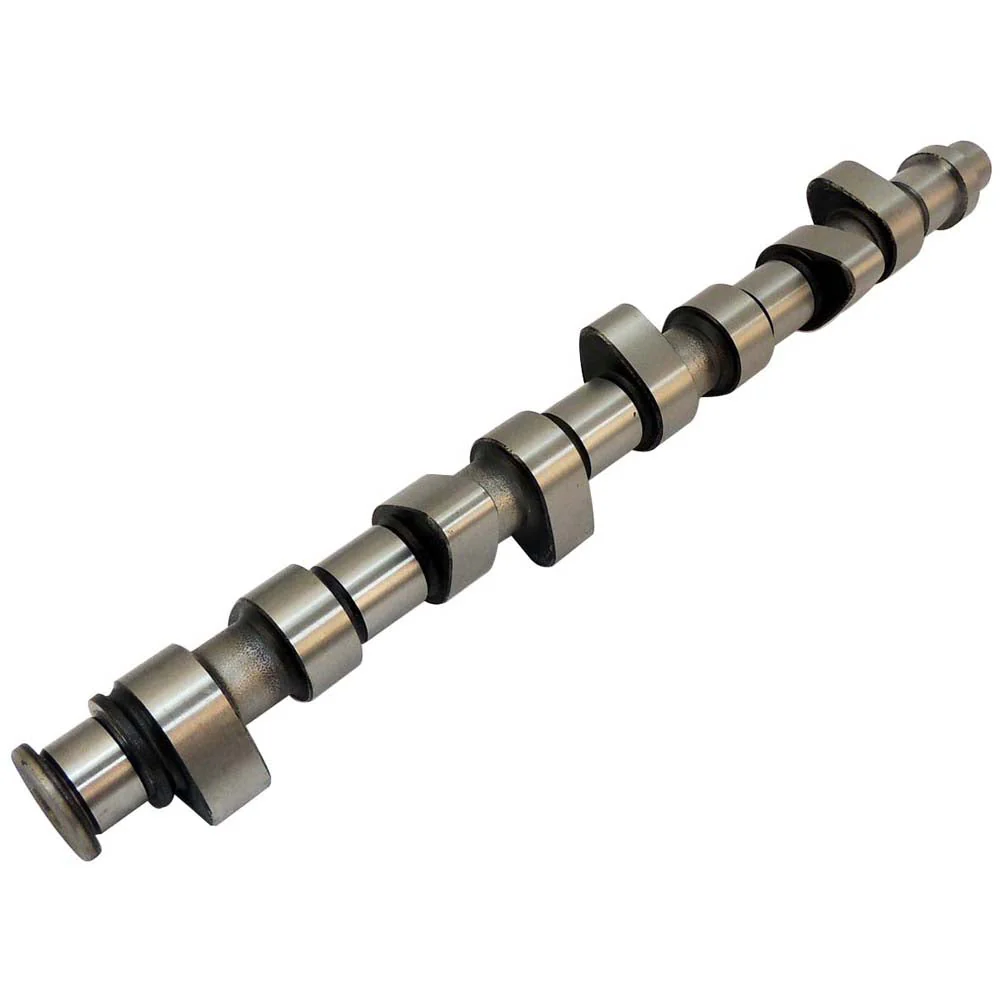

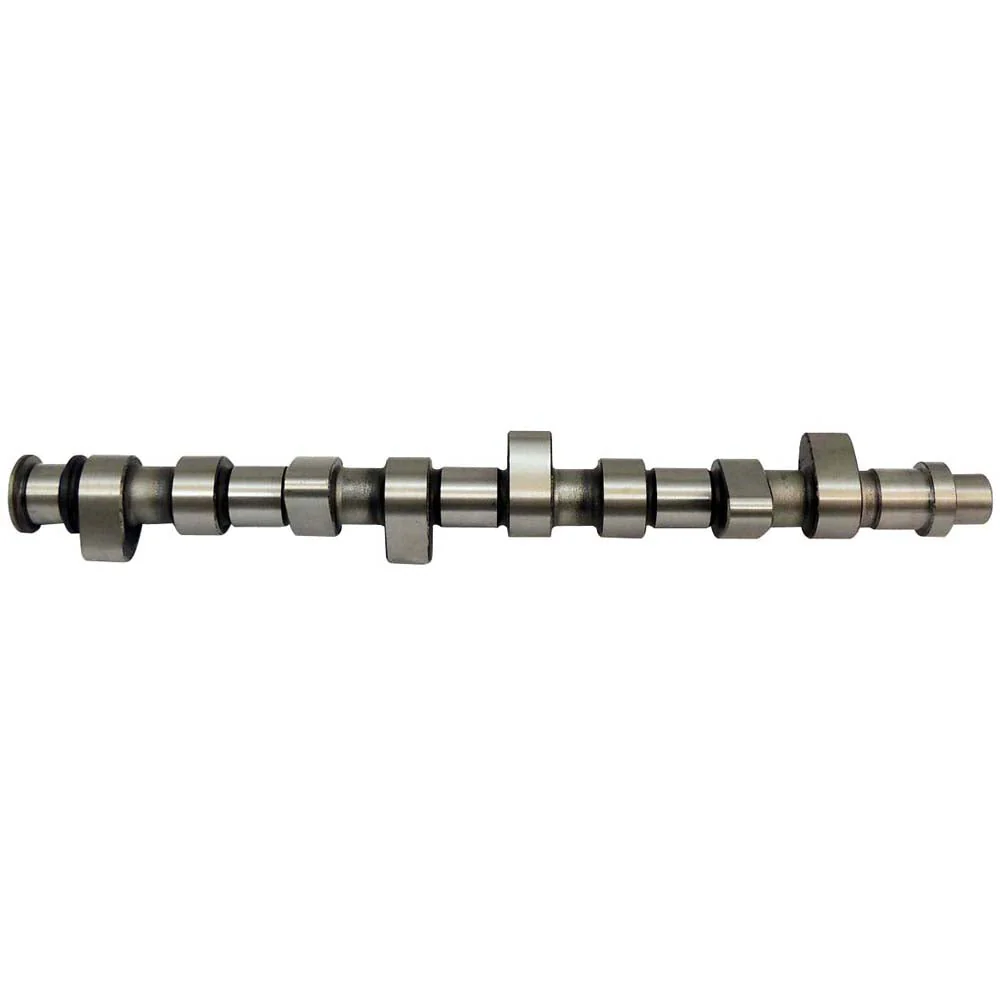

VW 8V 288 N/A application hydraulic tappets performance camshaft



Application: EA 827 engines Capacities 1781-1847-1984cc from 1986
8V Engines with hydraulic tappets

VW Golf, Corrado, Audi 80, 100, 5000, Quattro, Jetta, Passat, Scirocco, Sharon, Vento, Gol, Pointer, Saveiro.

Duration intake: 288 degrees
Duration exhaust: 288 degrees
Intake valve lift: 11.70mm
Exhaust valve lift: 11.70mm
lobe centers: 110 degrees

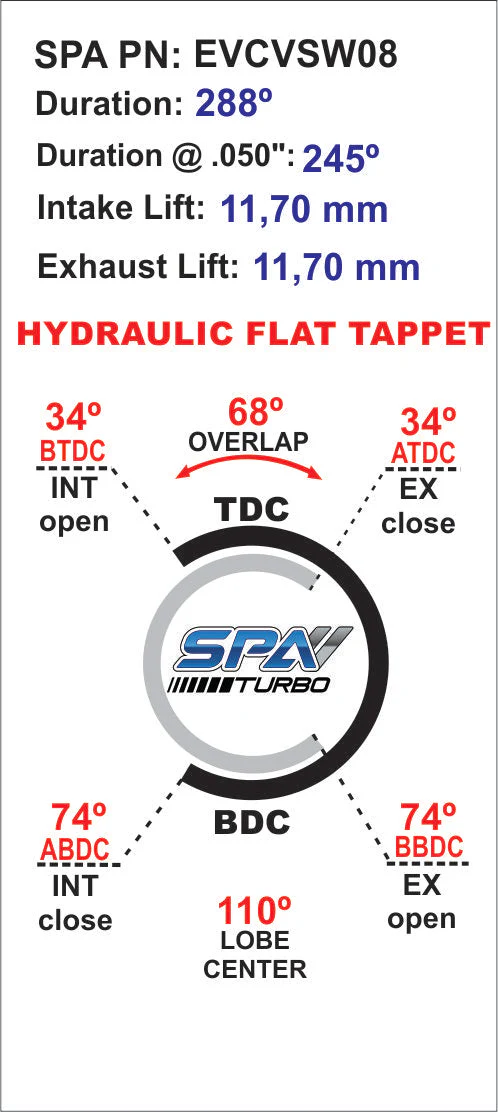

valve timing
Intake open: 34 degrees
Intake closes: 74 degrees
Exhaust open: 74 degrees
Exhaust close: 34 degrees
Valve clearance: hydraulic lifters*
Base circle: 34mm
Made of 1045 quenched steel
Billet machined
52-58 HRC

IMPORTANT: this is a performance camshaft, not a OEM replacement, installation may require ECU work, cylinder head work, special lifters and springs, no instructions included, no other parts included.





Attention: this camshaft can be used with solid lifters as long as valve lash caps (EMPI 4006, or similar) are assembled and adjusted individually. We strongly recommend that this should be done by a proper professional in order to achieve the correct valve lash values.

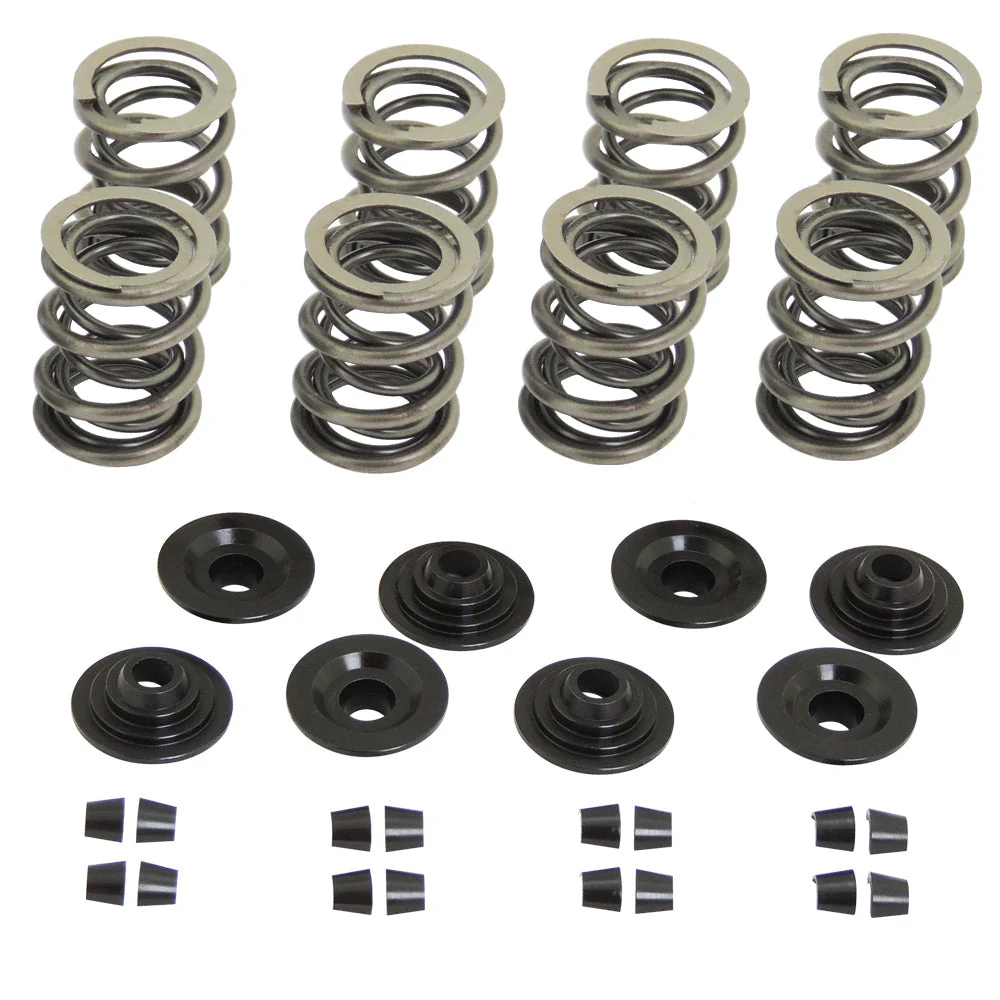

VW 8V HD DUAL SPRING SET FOR HIGH LIFT CAMSHAFT



For Up to 15 mm valve lift cams
10 degree lock to retainer seat angle
AISI 4140 Chromoly
will fit VW / Audi 8v SOHC engines, ABA, PG, G60 and others
Springs are made in UK

Note: this set requires Cam followers with 33.00mm internal diameter size.

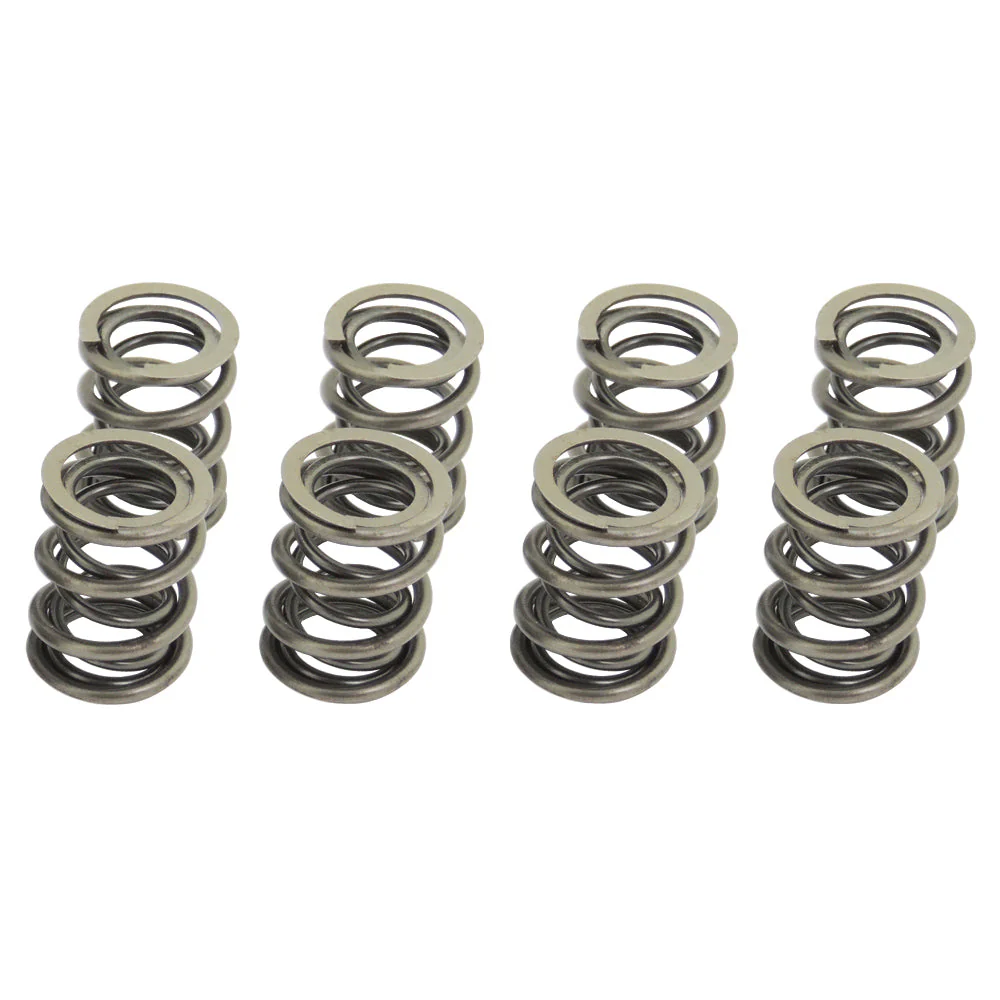

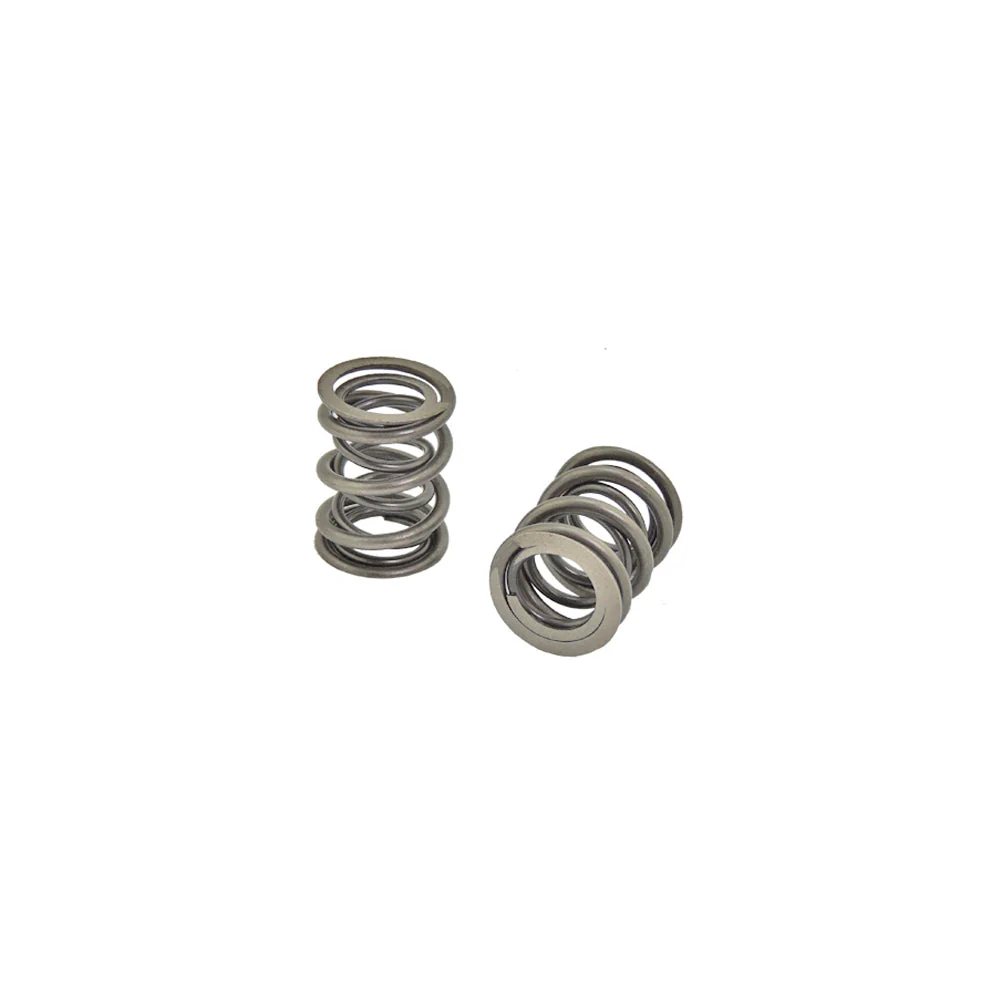

Springs:
External spring diameter: 32.60 mm
Internal spring diameter: 25.30 mm
Height: 42.00 mm
Assembly height of 36.00 mm - 80lbs
Load @ 12.00 mm lift - 205lbs
Load @ 15.00 mm lift - 245lbs
Maximum Lift: 15.00 mm

Valve lock:
AISI 4140 Hardened steel
for 7.00 mm 3 groove valve
10 degree

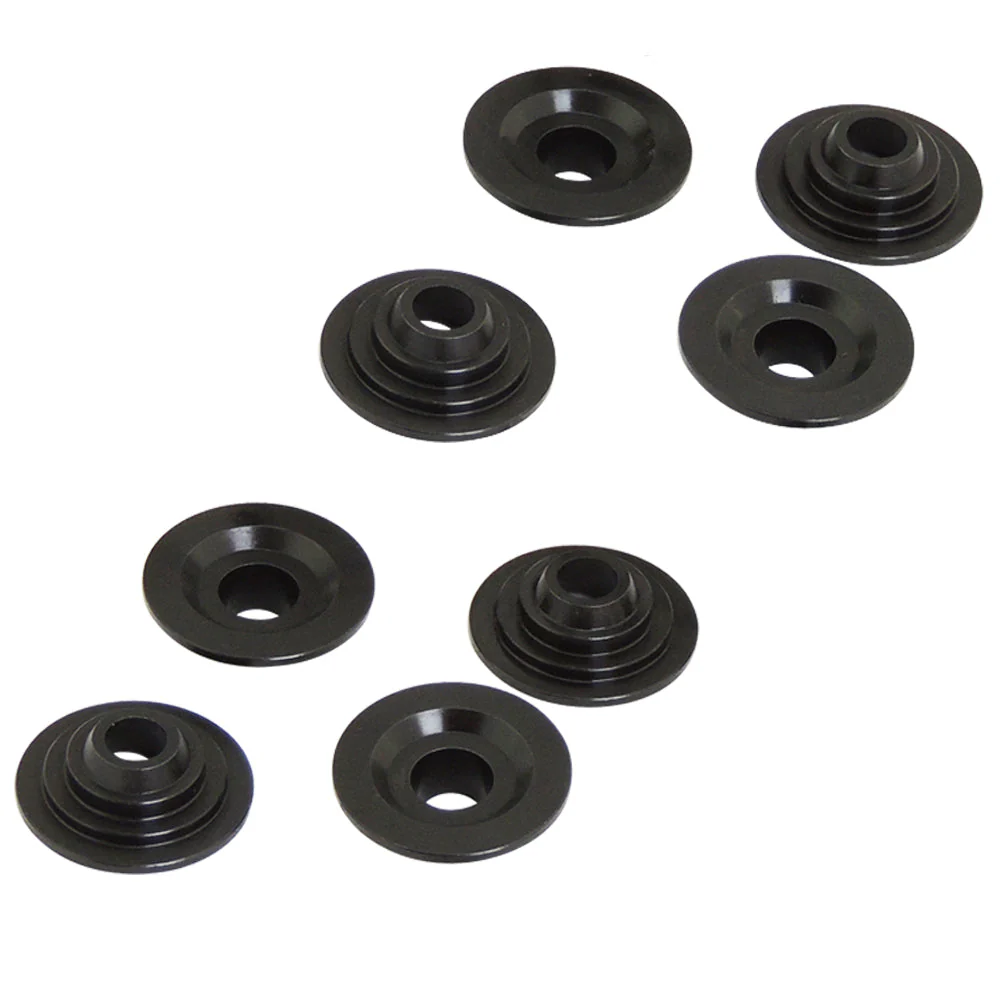

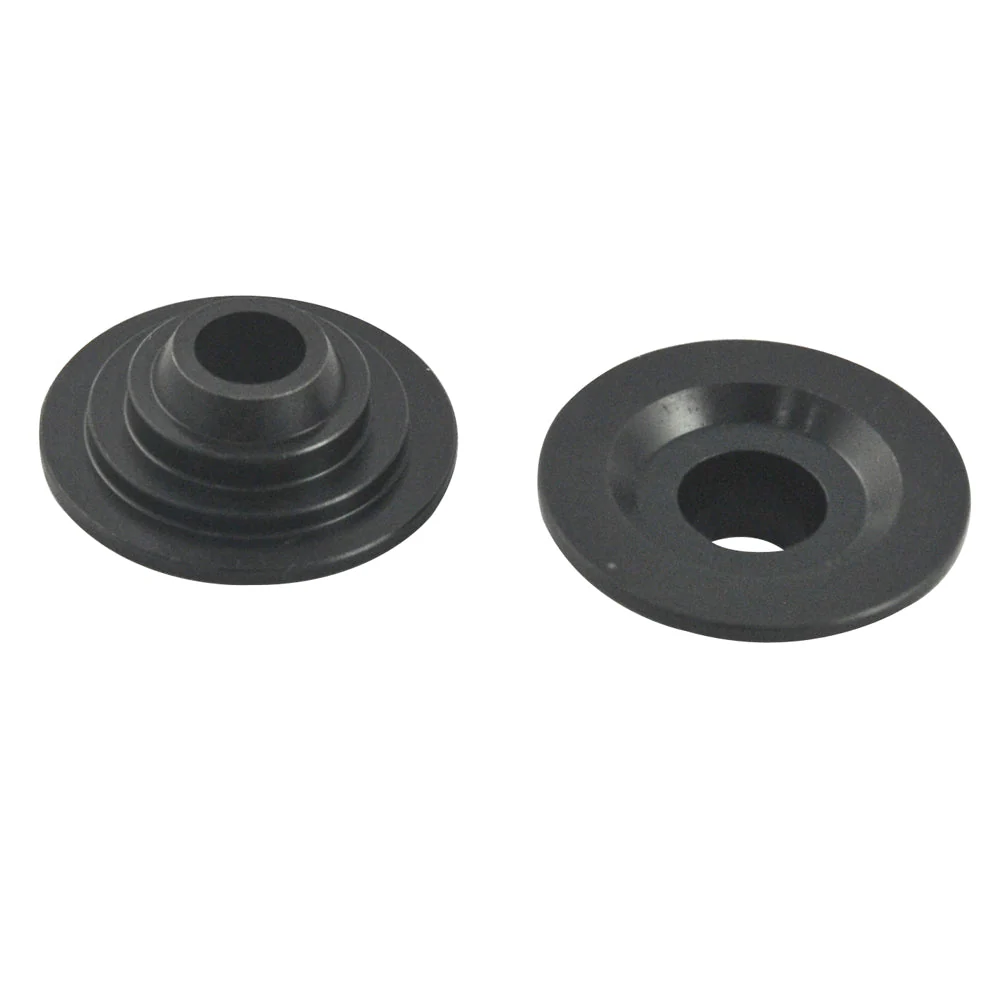

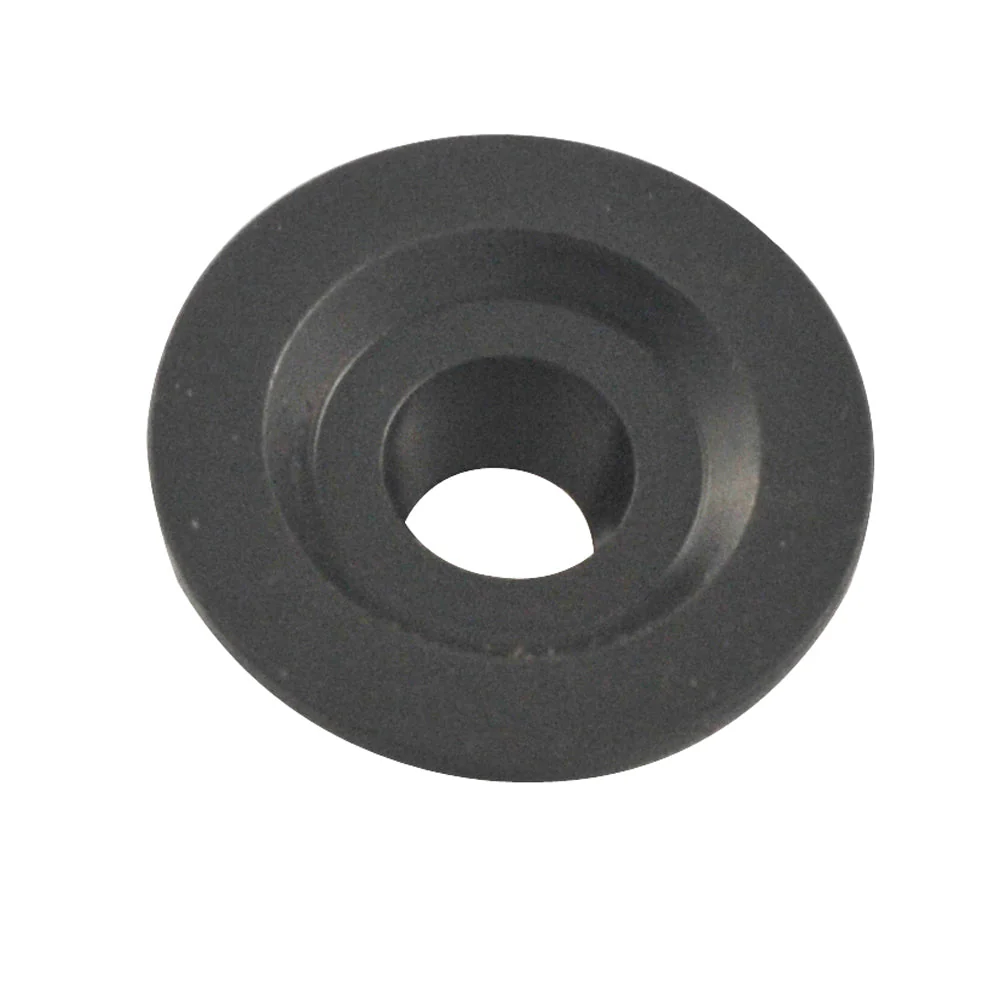

spring retainers:
AISI 4140 Hardened steel
10 degree
